The Arm & Platform Sewing Machine

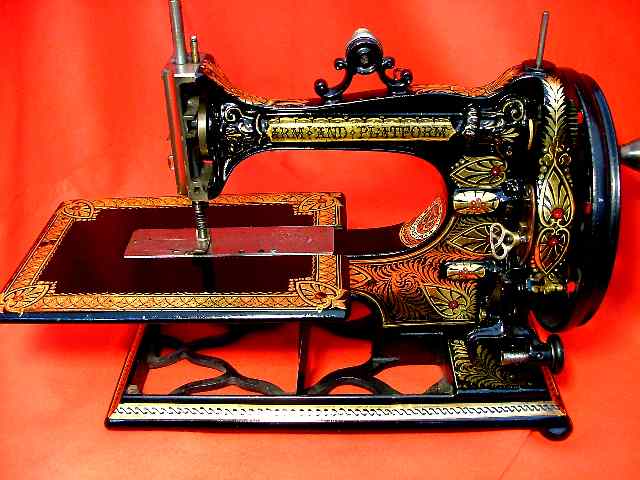

The stunning 1875 Arm & Platform machine by Edward Ward one of the favourite machines in my collection

The first time you ever see a Arm & Platform machine it makes your eyes widen. The sheer inventive genius, the beauty and the elegant lines are all inspiring. All of this was the accumulation of years of learning by one young inventor who left us with a legacy of one of the finest machines of the Victorian era.

Ward's early years in the sewing machine field are, at present, shrouded in the mists of time. there are a few scattered bits of information which I shall endeavour to depart.

Born in Brewood, not Walsall, Staffordshire, in 1829. By the age of 12 he was already a railway apprentice. They sure did start early back then!

At the age of 20 Edward went to London and carried on his engineering. After a brief departure to Maidstone working on paper-making machinery hew was back in the smelly old capital. They say that London had over 50,000 horses in the Victorian period working the streets. After a dry spell when the manure was wetted by rain the capital stunk like nothing on this earth!

Thomas Ward, pictured above, Edwards brother, had nine children, busy man!

In 1851 Edward married and continued in several positions around the Capital eventually working for Julian Bernard. Here he worked on several inventions for other people but it gave him a perfect grounding for his future ventures. He also perfected several of his own inventions there.

There is evidence that he established in his own factory in 1860 at 9 Wells Street, Oxford Street West. E. Ward & Co. But it is more than a decade after this that his stunning Arm & Platform arrived with much applause onto the London scene.

Edward Ward was well known in the sewing industry as a jobbing engineer with an inventive streak, working with several manufacturers of the day. His first machines, like many competitors were Grover & Baker and Howe copies possibly under license.

Elias Howe became one of the richest men in the world by selling the use of his patents but never actually making machines himself, clever boy!

By the tender age of 31 Edward Ward was in business for himself. He developed his factory and stores were at No4-9 Wells Street London, just off Oxford Street by adding a shop frontage to catch passing trade from Oxford Street right in the heart of the great City. Here he built machines from around the 1860's until 1892, when, disillusioned with the trade, he retired. But we are jumping ahead, let's get back to the young lad and his new business.

Ward had already a good founding in the sewing machine business working for a company specializing in inventing new models and products. His father was a Walsall locksmith so Edward would have grown up around small mechanical objects. His first few jobs reflected this, working mainly in engineering and on the railways and other places before starting his own business.

The list of Edward's early machines is somewhat scanty. What we have are his Grover & Bakers and Howe type mechanisms.Mainly for the shoe trade. These made up most of his early business from the 1860's till his first Arm & Platform patent in 1873. At his factory he made machines for customers and worked as a jobbing engineer making whatever would sell or was ordered.

Working for other people, Edward obviously saw how he would make a machine and sell it wholesale only for his customers to make a lot more money then selling it on retail. The writing was on the wall. Edward had to design, make and sell his own machines.

Ward's machines were packed in wooden crates

His machines included a shoe closing machine which he had perfected whilst working for a previous employer, J. Bernard of Pimlico. An elastic sewing machine or elasticator. And a cross arm machine for attaching straps to boots and some sort of embroidery or shoe flowering machine that was apparently popular at the time. His machine won a couple of silver medals so it must have been good.

Edward seemed to concentrate his market on very specialized machines. This must have given him a good niche market in the bustling rag trade of Victorian London but not a large one. Edward was desperate to crack the big boys like Singer, Jones and Frister & Rossmann.

All the time Edward was selling his specialist machines he was working at producing a normal household sewing machine, something that would have mass appeal and make him wealthy. His first attempt was the Lily but proved clumsy, noisy and hard to thread. If the machine was noisy it could mean it would wear quickly and become unreliable. Anyway it did not last long and I never seen one so I have no idea of what it looked like.

Flowering, or embroidery, which one of Edward's machines did, was disappearing as a fashion on shoes but he still picked up one gold medal and two silvers at the London Agricultural Fair.

Edward also made special machines for making jockey boots as well as huntsmen's and coachmen's boots. He also perfected a chain-stitch machine which I have never seen but proved popular because of its stretch thread ability.

Special needles for a special machine

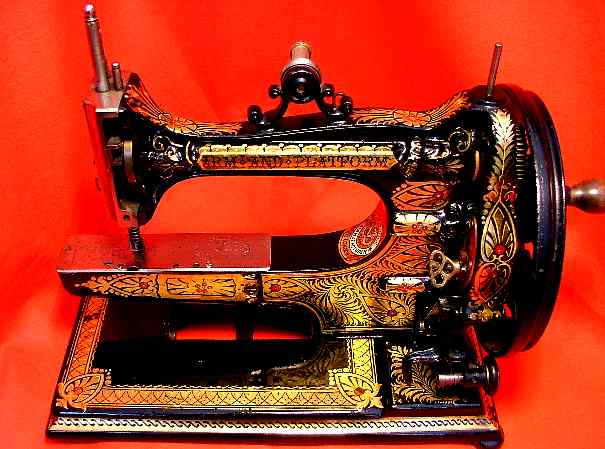

Edward went to work on something very special. Learning from his early mistakes and using his wealth of engineering knowledge he crafted a beautiful, practical and elegant design with a narrow free arm and a swinging platform for normal sewing. The narrow free arm would be perfect for more specialized work but once the platform is lifted normal garment could be sewn with ease, the best of both worlds.

A little know fact that came to light recently was that his brother, Thomas Ward, also made sewing machines at Kings Lynn. Thomas and Edward were sons from their fathers second marriage. They also had a half-brother, William, who was also an engineer and lived next door to Thomas. Their father was a locksmith so you can see where they all got their skills from.

On the Norfolk Coast Thomas had a corner workshop at 15 Albion Street & Railway Road, Kings Lynn. He obviously did not prosper in sewing machines as the 1881 census has him listed as a general labourer in Swaffam, Norfolk.

I have never seen one of Thomas' machines so we had better get back to our main story. It was just an interesting ditty.

Thomas Ward

Edward's first patents for the Arm & Platform were in the early 1870's  but in April of 1873 the full patent was granted for his spectacular Arm & Platform. He continued for several years as he perfected each part of his spectacular machine. The Arm & Platform was obviously his pride and joy.

One of Ward's improved patent application of 1875

Ward’s splendid rising free-arm table was the work of a brilliant mind and superb craftsman. The light elegant lines of his machine are simply inspiring. The lightweight and ease of movement makes his machine stand above most other hand operated machines. His little but precise shuttle is a delight in itself.

Success was assured, one company placing an order for £18,000 worth of machinery. That must relate to a fortune in today's money.

However, top-quality hand-made engineering came at a price, which was above his competitors at over £4. Remember Weir's machine was 55 shillings at the time! Quality came at a price. Even the tension adjustment was a fine-vernier calibrated dial compared to the basic springs and washers of his opponents.

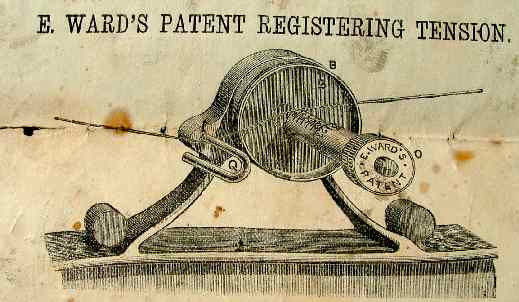

Even the tiny shuttle had a calibrated tension

In 1877 Edward was granted the first ever patent for a self-threading shuttle!

The launch of his spectacular machine was met with much approval and the press of the day lavished praise on Edward Ward's inventive skills. The machine came with a host of attachments and a unique thread-oiler that clipped onto the top of the machine, a throw back to Ward's boot making machines.

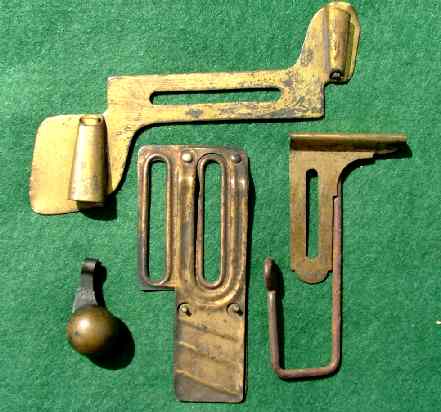

plenty of extras came with the Arm & Platform
including the little round thread-oiler on the left

The Queen Magazine, a popular publication in the Victorian era, described his magnificent machine as the most perfect dressmakers machine yet invented. Now that can't be bad!

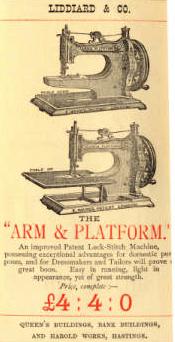

Edward's business was never large. He didn't really cracked the big time, and hated mass production and the loss of quality that implied. It was not for the lack of trying to get big but he stayed a small engineering company supplying specialist, handbuilt, machines to wholesalers such as M. Liddiard's, his Hasting Agent.

One of Ward's wholesalers just up the road from me where Logi Beard invented the TV!

Always the inventor and engineer Edward, later in the 1880's, also made and sold other machines as well as his baby. He also manufactured and sold bicycles much like many other smaller sewing machine manufactures of the time. His was called the Capital Safety Cycle.

In 1886 he patented an anti-reversing machine mechanism to stop the user accidentally going backwards whilst treadling a sewing machine, a common problem even today.

He also played around with a chainstitch machine much like the popular Willcox & Gibbs. There was the Alert machine of 1888.

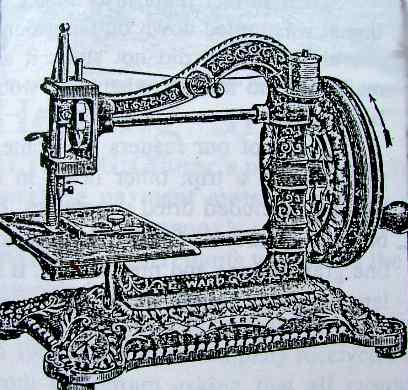

A woodcut of Ward's 1888 Alert chainstitch

Finally, in the same year his model 12 possibly made to compete with Singers best selling 12k. He was also selling another boot machine, he seemed to love tinkering around with very specialized machinery.

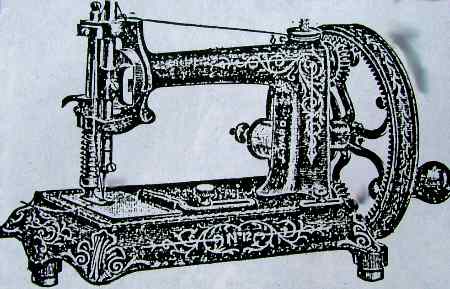

Edward Ward's last machine the model 12 of 1888

By the early 1890's Ward became disillusioned with the cheap imported sewing machines and lack of craftsmanship in his competitors machines. I can understand how he felt. It was a bit like back in the 1960's when stuff from Hong Kong was cheap, much cheaper than our products, but what tat! Most of my toys broke after about three goes, maybe it was just me!

Aged 63, a good age, after 40 years in the trade, he decided to pack it all in and enjoy himself. In September 1892 he retired from the sewing industry and left it to the mass-produced machines of the day rather than his hand built beauties. Sellers & Allen took over selling the Arm and Platform machines until their demise around 1893-95.

However that did not stop him tinkering with other inventions but no more sewing machines. He perfected a wood-working machine for his nephew's sawmill, Walter Savage.

Unfortunately our inventor came to a tragic end in October 1896, dying from wounds inflicted by a pony whilst out on a drive, with Walter, along Langdale Road, Peckham, East London. Nasty. He was thrown form his carriage and trampled to death by the horse!

One of the first true sewing machine pioneers was dead!

His legacy to the world was one of the finest sewing machines ever made and one of the most sought after. His hand-built beauties are still a wonder to behold. There are several in museums around the world including the Science Museum in London.

One sold in November 1993 for over £1,500 and another at Christie's in London the same year for over £1,650 plus commission.

Ward's stunning Arm & Platform is one of the most beautiful sewing machines of the Victorian era and very collectible today so grab one if you ever get the chance.
